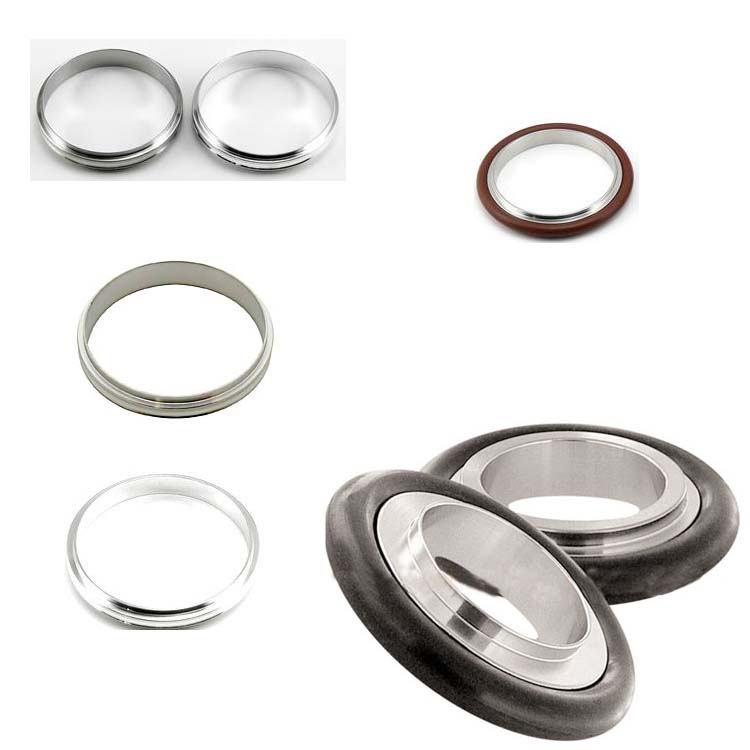

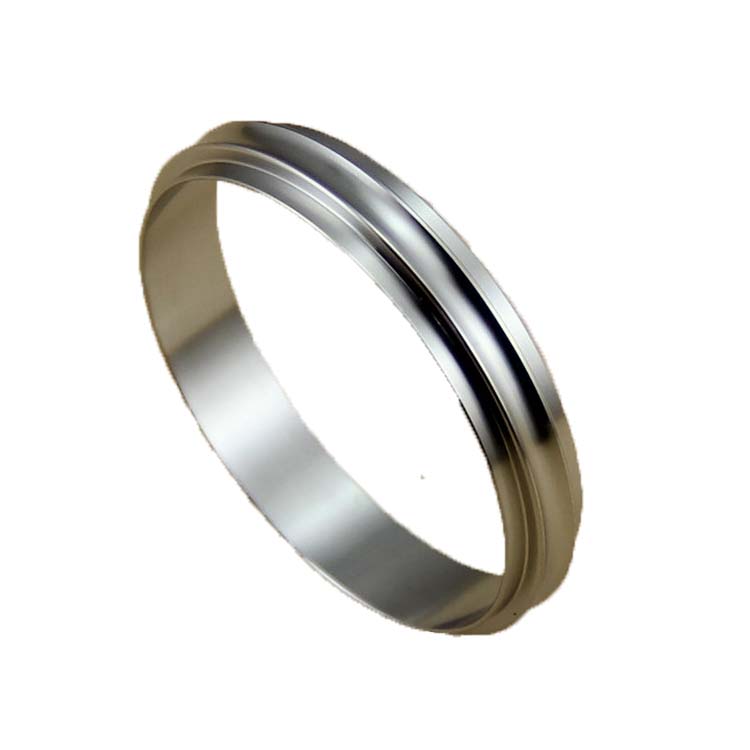

NW/KF Centering Rings, stainless steel 304 316L or aluminum ,without O-ring,Made for standard diameter O-rings.

Name:NW/KF Centering Rings, stainless steel 304 or aluminum without O-ring,Made for standard  diameter O-rings.

Materials:304,316L,AL

Specification:KF10,KF16, KF25, KF40, KF50

Huiputech ISO-KF fittings are manufactured according to ISO 2861/1, DIN 28403 and Pneurop 6606. Our quality fittings are the standard components for all vacuum and high vacuum applications. The high quality Huiputech components are designed and tested for leak rates less than 1 x 10-9 mbar l/s.

Benefits:

Competitively priced

World wide logistics

Design and measures follow strictly international respected standards

2011/65/EU RoHS compliant

F&Q:

NW (also known as KF & QF)

NW Vacuum Flanges and Fittings are quick releases and offer great preformance in rough vacuum to high vacuum applications. NW Vacuum Fittings assemble quickly and easily into a vacuum system. Sizes range from 10mm (NW10) to 50mm (NW50). In addition, seals are reusable and bakeable to 150°C with Viton O-ring seals (most commonly viton, buna, or silicone).

Is there difference between NW, KF or QF?

No. NW, KF (from Klein Flansche) and QF are the same types of vacuum flange systems. KF is the more popular term in Europe, while NW is more common in North America. QF refers to Quick Flange, a descriptive name for its properties. NW Components excel in rough to high vacuum environment.

NW Flange Materials

Standard material of construction is 304SS or aluminum. Stainless 316L is available on request. Clamps are usually aluminum as they are not exposed to the process gas but stainless steel is also available. O-ring materials are most commonly viton, buna or silicone. Centering rings can be either aluminum or 304 stainless.
