Aluminium KF Vacuum Clamp

Name:vacuum clamp,KF flange clamp with wing nut, High quality fastener clip vacuum pump accessories vacuum clamp
Materials:Aluminium
Specification:KF10,KF16, KF25, KF40, KF50
Packaging Detail:As per requirement
Delivery Time:7 to 15 Days
Place of Origin:China

Download pdf and 3d model

Name:Aluminium KF vacuum clamp,KF flange clamp with wing nut, High quality fastener clip vacuum pump accessories vacuum clamp

Materials:Aluminium 304

Specification:KF10(16), KF25, KF40, KF50

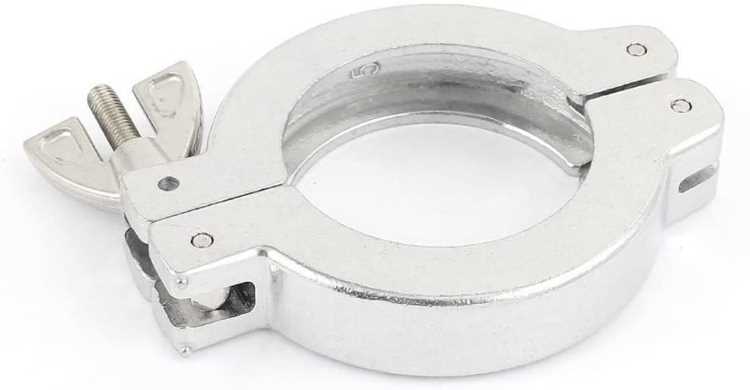

These KF Quick Clamp with Wing Nut Closure vacuum fittings follow ISO-KF standards and have a flange size. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50.

huiputech-Vacuum Clamp-300x300-02.jpg

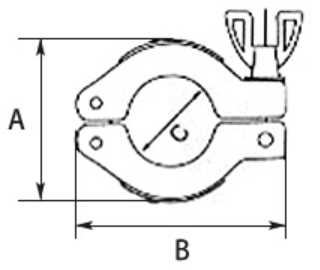

Order Name	Material	A(mm)	B(mm)	C(mm)	Thickness(mm)
Vacuum Clamp KF10	Aluminium	41	63	21	16
Vacuum Clamp KF16	Aluminium	41	63	21	16
Vacuum Clamp KF25	Aluminium	53	72	32	16
Vacuum Clamp KF40	Aluminium	68	90	46	17
Vacuum Clamp KF50	Aluminium	90	113	60	20
		Actual measurement size
