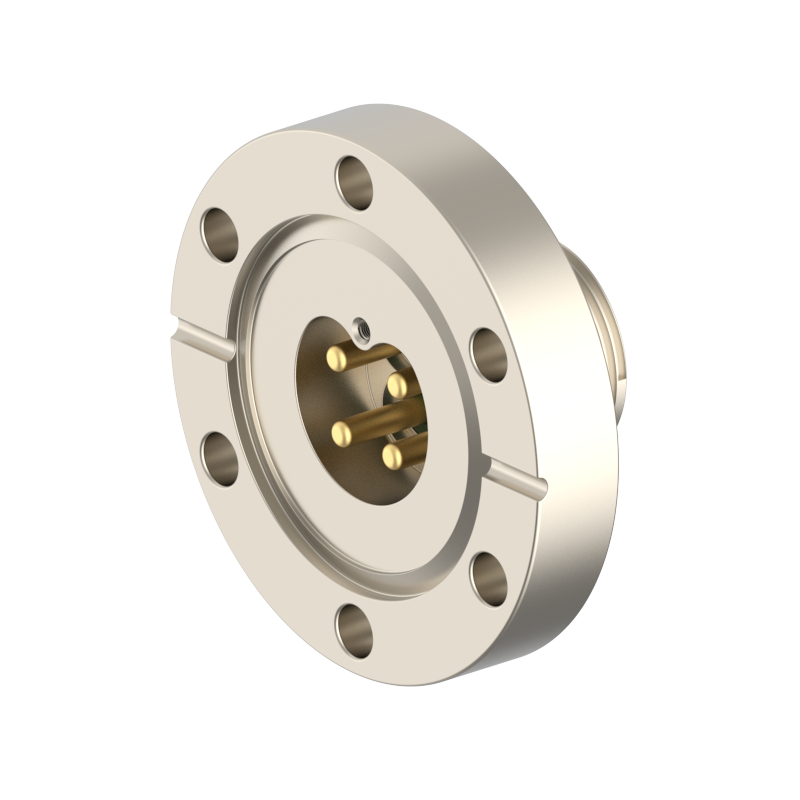

Z-SA-CF40-0435M，Z-SA-CF40-0435L，Z-SA-CF40-0435XL

4P pin diameter 3.5mm CF40 flange

Withstand voltage
(between male pin and shell).... Max 1000 VDC (0.5mA)
Rated voltage............................................ Max 380 VAC
Current ................................................... Per pin/All load
Z-SA-CF40-0435M................................... Max 18A /10 A
Z-SA-CF40-0435L.................................... Max 25A /14 A
Z-SA-CF40-0435XL.................................. Max 25A /14 A
Helium Leak rate................................. <1X 10-9Pa*m3/S
Long-term Temperature range...................... -45~+200°C

Download pdf and 3d model

lHuipuVAC SA‑series vacuum feedthroughs feature a patented structural design and are specifically engineered to suppress vacuum sparking, vacuum breakdown, and low-pressure electrical breakdown.

lThe vacuum seal employs a glass‑sintering process that delivers ultra‑high vacuum (UHV) sealing performance.

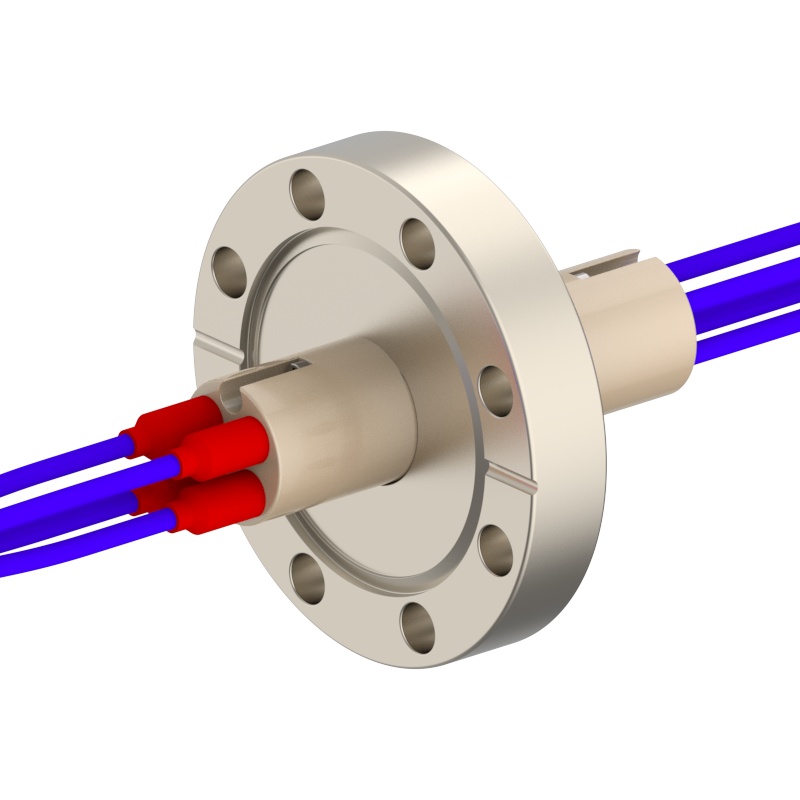

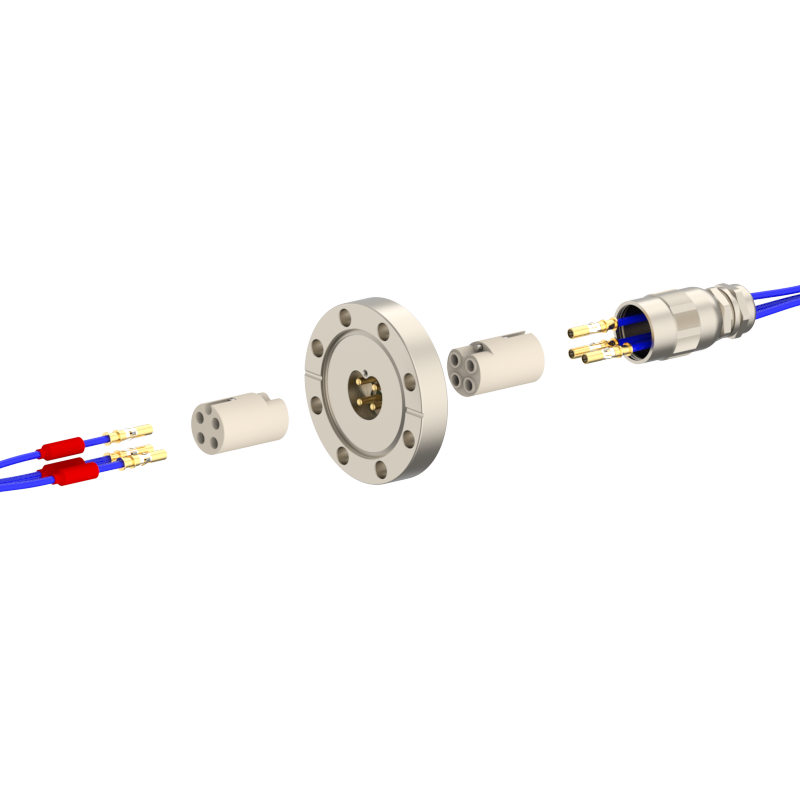

lPlugs are provided on both the vacuum and atmospheric sides, allowing easy plugging/unplugging for simple assembly and wiring. The plugs feature a keyed (polarized) design to prevent misinsertion and are made of low‑outgassing materials, making them suitable for high‑voltage (HV) environments.

lBoth sides are equipped with terminals that feature a rugged, wear‑resistant design, ensuring reliable performance after repeated plugging/unplugging.

lMultiple mounting options are available, and a complete selection of flange interfaces (KF/CF/HF/ISO) is offered for connection to vacuum chambers.

The specifications above are subject to change. For the definitive technical data, please refer to the Huipu Technology Product Manual.

Download : "Huipu Technology Product Manual"
