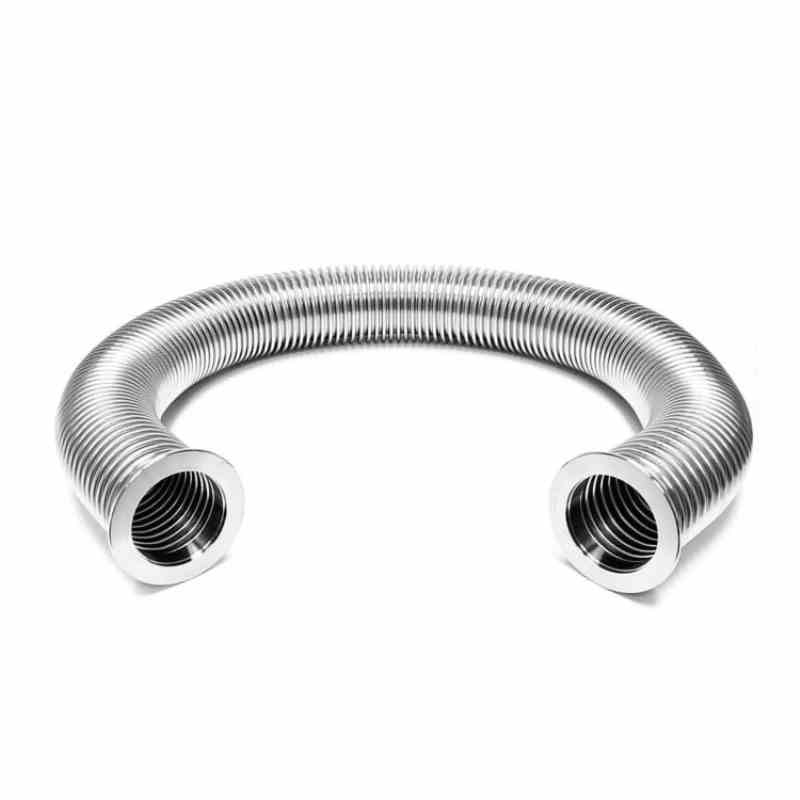

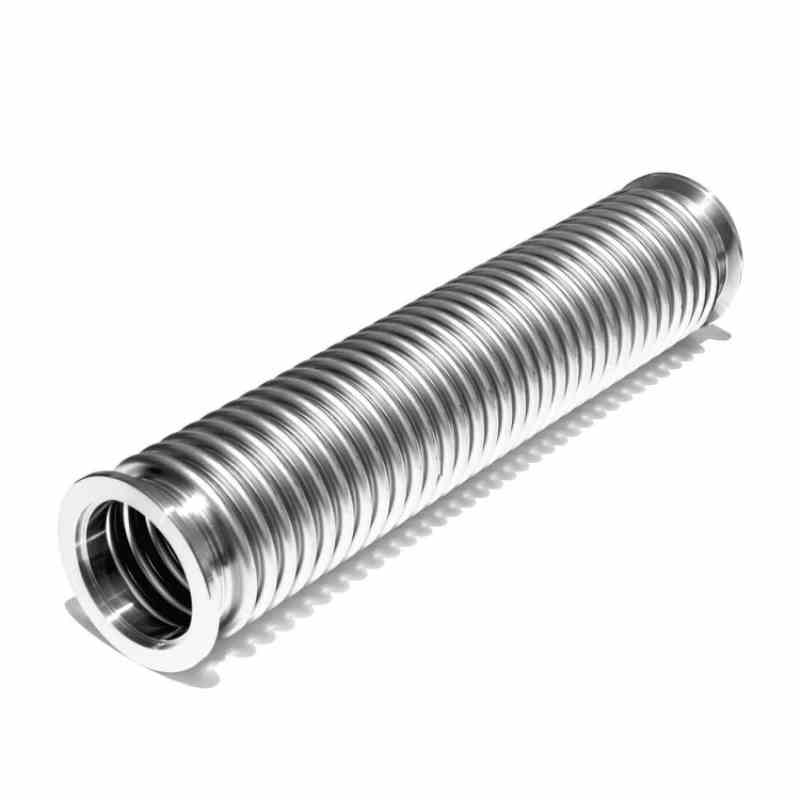

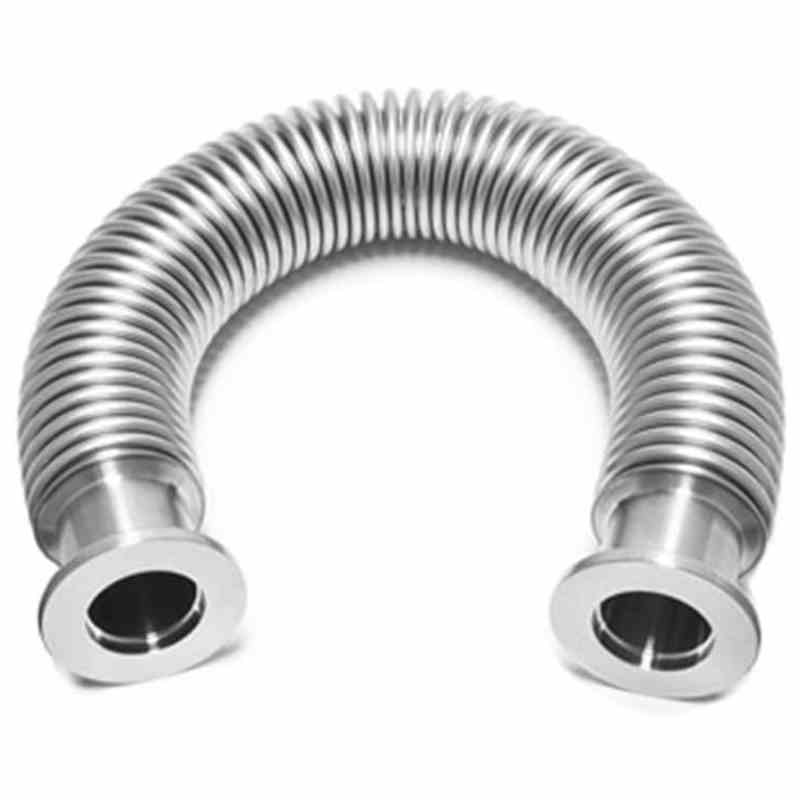

Vacuum KF bellows,KF(NW) hose bellows,thin wall

Name:Vacuum KF bellows,KF(NW) hose bellows,thin wall

Materials:stainless steel 304

Specification:KF10,KF16, KF25, KF40, KF50

Leak rate:1x10-10Pa.L/S

Packaging Detail:As per requirement

Delivery Time:7 to 15 Days

Place of Origin:China

Length of stock(mm):

100,150,,200,250,300,400,500,800,1000,1200,1500,1800,2000,2500,3000,3500,4000.

Question – What are Vacuum Bellows ?

Answer – Vacuum Bellows  come in different styles, Hydroformed and Edge Welded Vacuum Bellows are available in a number of different configurations.

Question – What are Vacuum Bellows used for?

Answer – Hydroformed Vacuum Bellows are thin walled flexible bellows that are mechanically formed by a Hydraulic forming process that shapes the bellows into the desired size and shape. The smaller size types are very flexible and are commonly used to connect from a Vacuum Pump and a Vacuum Manifold that may be far apart or to reduce the vibration transmission.

Question – What are the standard sizes for Vacuum Bellows?

Answer – Hydroformed Vacuum Bellows can be supplied in different standard sizes. Components Catalogue and are available with KF (Klein) Vacuum Flanges or ISO Vacuum Flanges. The selected size and Vacuum Flange type is decided by the size of the mating Vacuum Flange on the Vacuum Pump or Vacuum Manifold.
