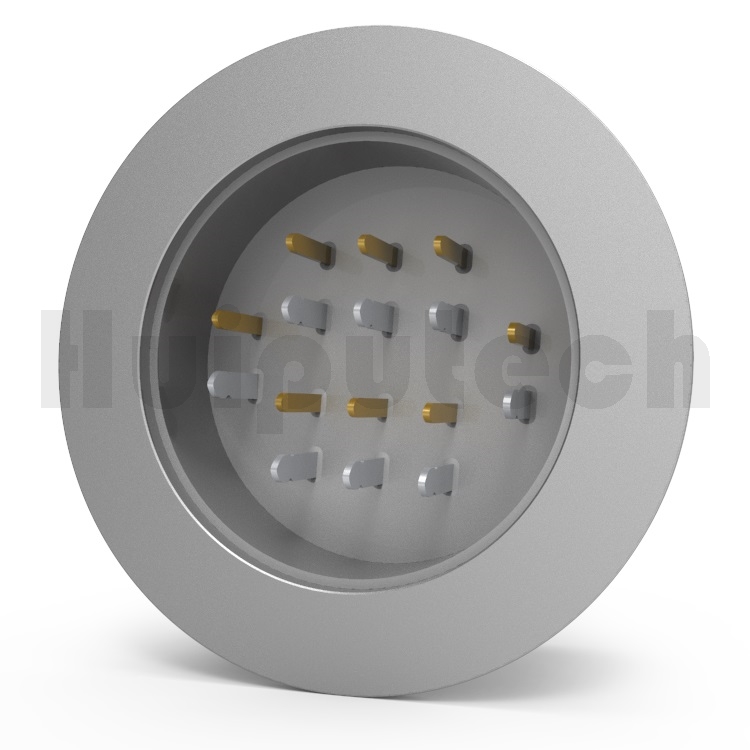

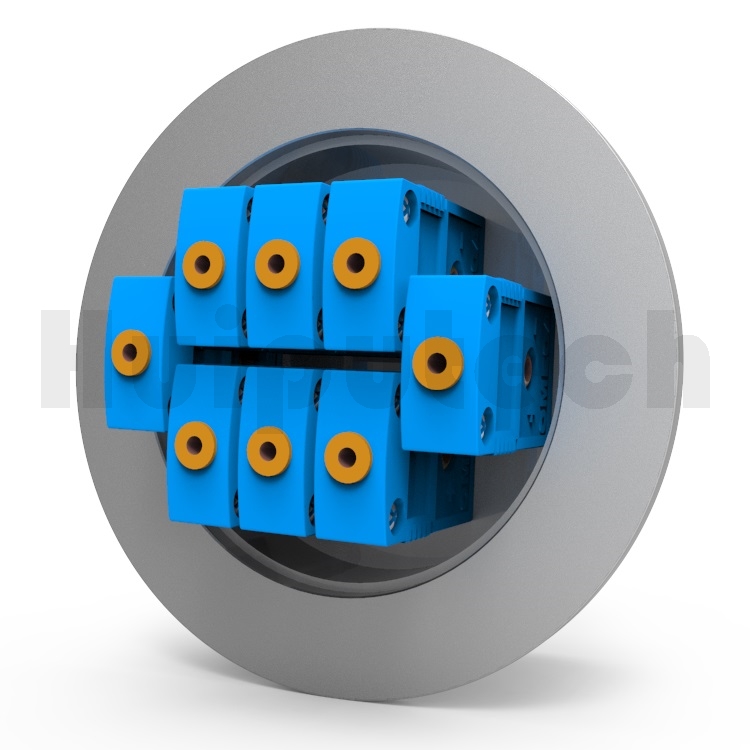

Thermocouple feedthroughs T-KF50-1608T (KF50, 8 channels, type T)

  • material:
    Flange body: stainless steel SUS304
    Vacuum pressure:
    Ultra-high vacuum (CF): 1*10-8Pa
    High vacuum (KF): 1*10-6Pa

    Download pdf and 3d model
    share to facebook share to twitter send email to us share to pinterest share to linkin share to googleplus

Features

l Connector dedicated to connecting thermocouple to vacuum

l Used in ultra-high vacuum power transmission

l CF or KF mounting flange

l Vacuum leakage is as low as 1*10-9 Pa*m3/s

l Both vacuum side and atmospheric side can be plugged and unplugged

l Suitable for K-type, J-type and T-type thermocouples

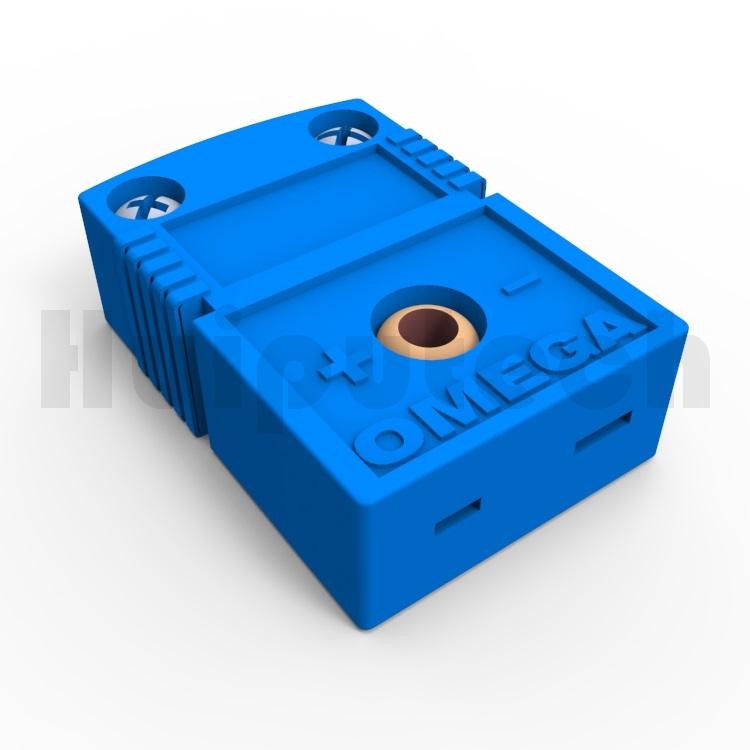

l Adapt to common SMPW thermocouple connector

     This series of thermocouple vacuum connectors is dedicated to the thermocouple signal transmission in the vacuum container. The vacuum seal adopts the industry's mature glass sintering process, and the installation and fixation adopts standard CF/KF interface. The plug uses the common SMPW thermocouple connector in the market. Both side and atmospheric side can be plugged and unplugged, the performance is very stable and reliable, and the assembly and wiring is very convenient.

     Compatible thermocouple types are K type, J type and T type.




Dimensions






Series Selection Table
