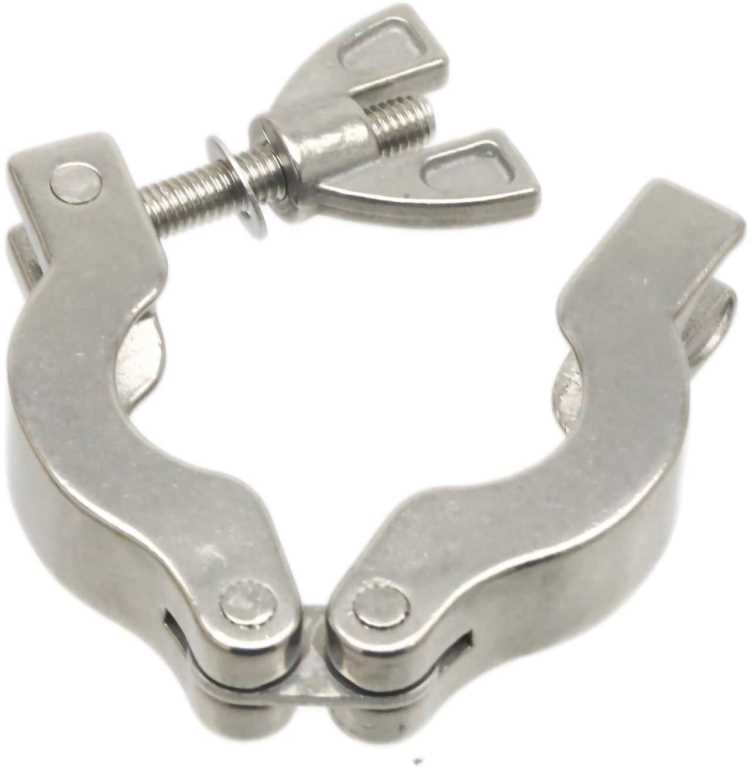

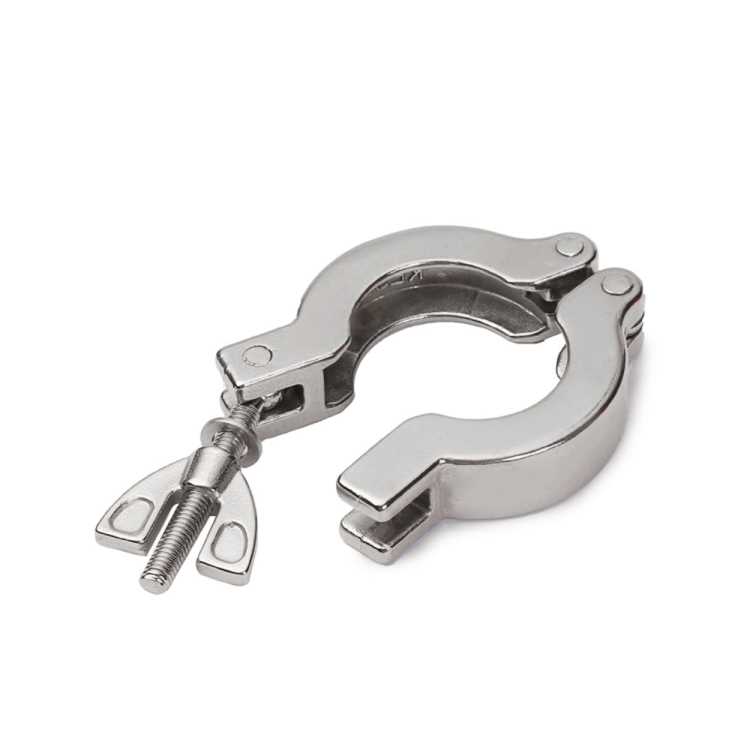

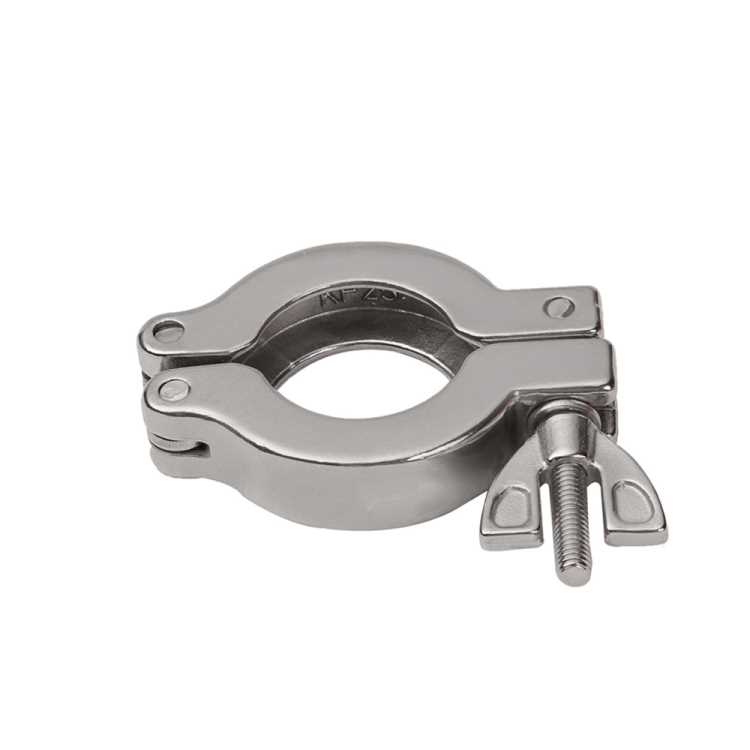

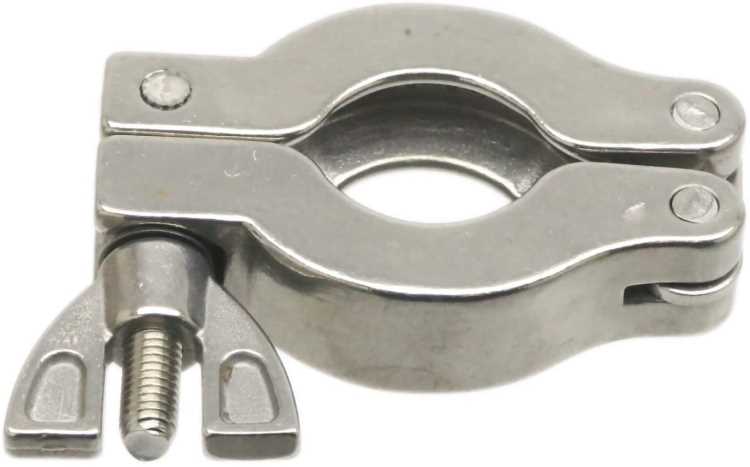

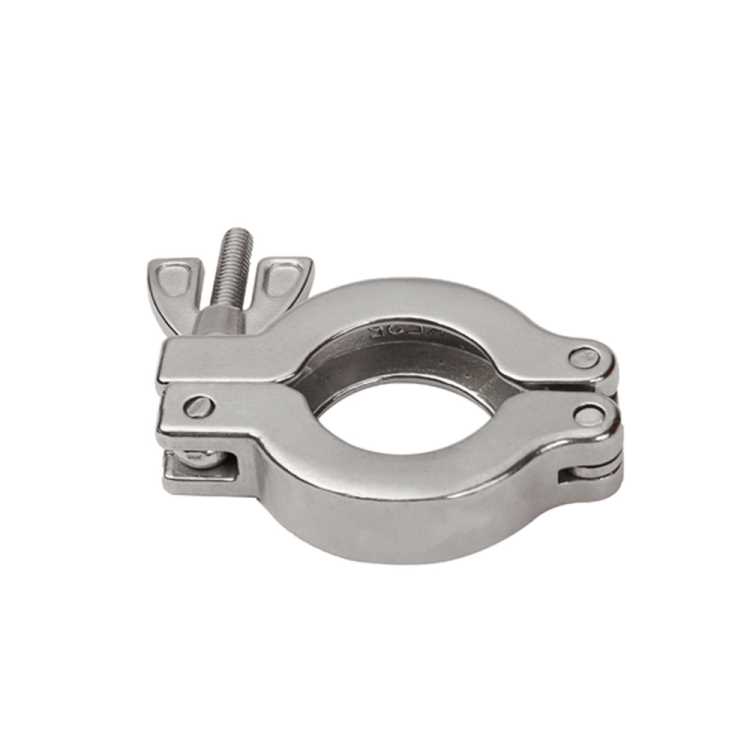

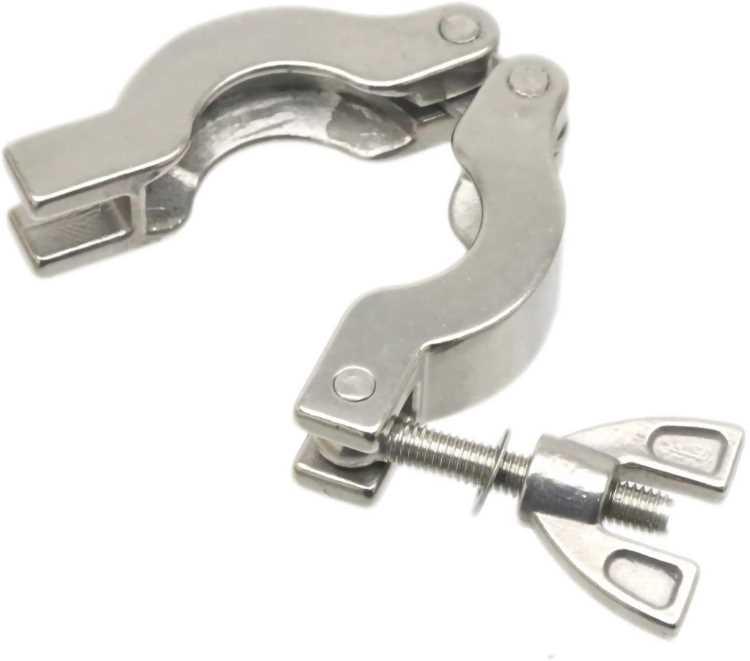

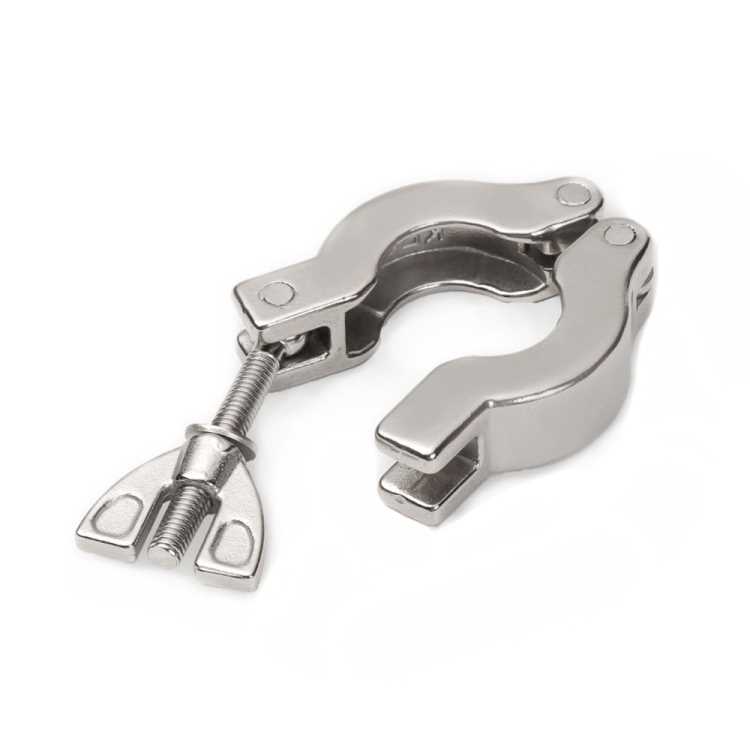

Name:stainless steel KF vacuum clamp,KF flange clamp with wing nut, High quality fastener clip vacuum pump accessories vacuum clamp
Materials:stainless steel 304
Specification:KF10(16), KF25, KF40, KF50

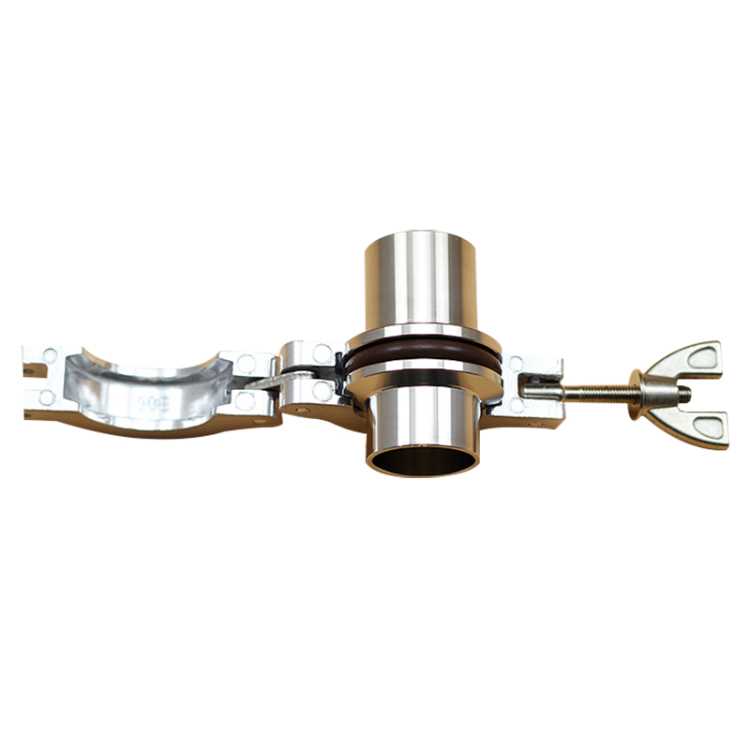

These KF Quick Clamp with Wing Nut Closure vacuum fittings follow ISO-KF standards and have a flange size. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50.

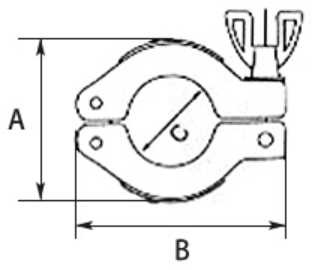

| Order Name | Material | A(mm) | B(mm) | C(mm) | Thickness(mm) |
| Vacuum Clamp KF10 | Stainless Steel 304 | 41 | 63 | 21 | 16 |
| Vacuum Clamp KF16 | Stainless Steel 304 | 41 | 63 | 21 | 16 |
| Vacuum Clamp KF25 | Stainless Steel 304 | 53 | 72 | 32 | 16 |
| Vacuum Clamp KF40 | Stainless Steel 304 | 68 | 90 | 46 | 17 |
| Vacuum Clamp KF50 | Stainless Steel 304 | 90 | 113 | 60 | 20 |
| Actual measurement size | |||||
