HOME>>PRODUCTS>>Split Feedthroughs

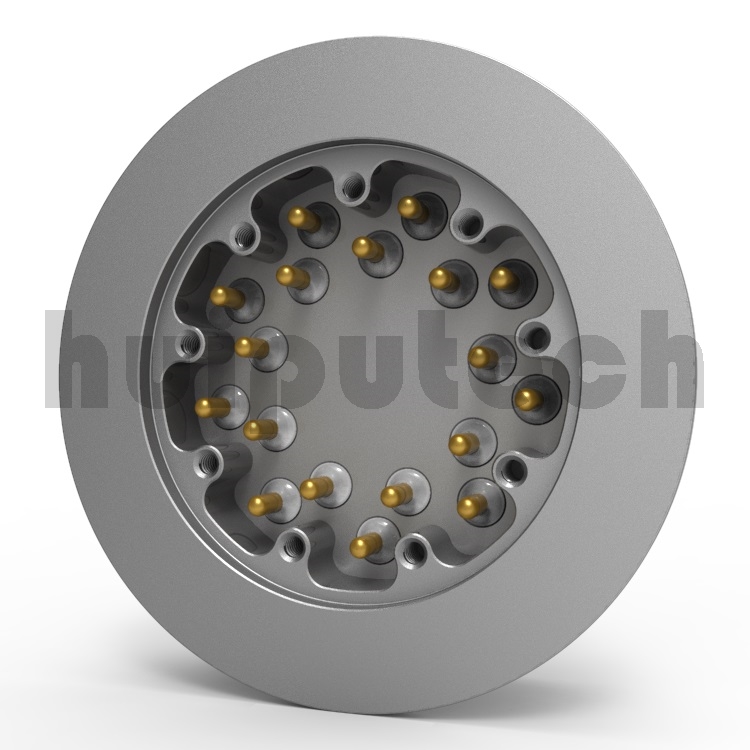

Split Feedthroughs P-KF50-1825 (KF50 2P*9 male pin 2.5mm)

  • Voltage/current: 1000VDC/16A (male pin diameter 2.5mm)
    Flange material: stainless steel SUS304
    Plug material: PPS
    Vacuum pressure: CF: 1*10-8Pa; KF: 1*10-6Pa
    Temperature range: 230°C
    Mating times: >10000 times

    Download pdf and 3d model
    share to facebook share to twitter send email to us share to pinterest share to linkin share to googleplus

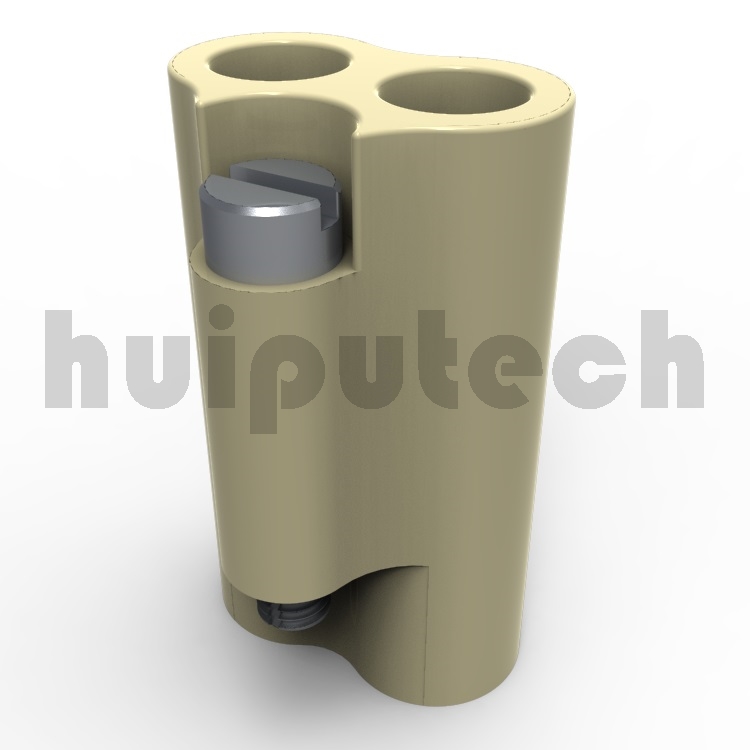

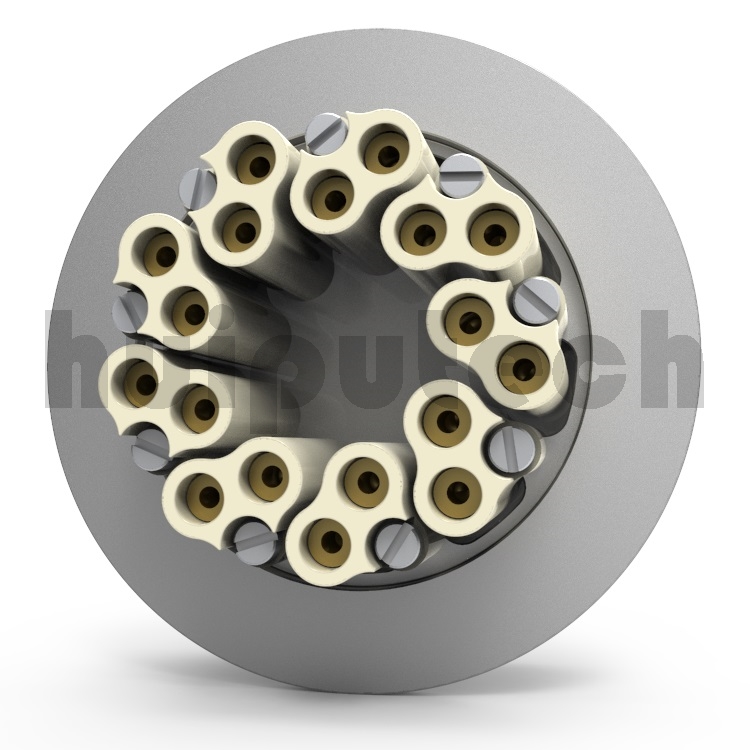

This series of vacuum connectors are especially suitable for three-wire thermal resistance, sensors and low-current DC power supply in vacuum vessels. The vacuum seal adopts the industry's mature glass sintering process, the installation and fixation adopts standard CF/KF interface, and the plug adopts split plug design. , The performance is very stable and reliable, and the assembly and wiring are convenient.
